Part Details Screen.

CutList Plus Viewer App for iPhone and Android.

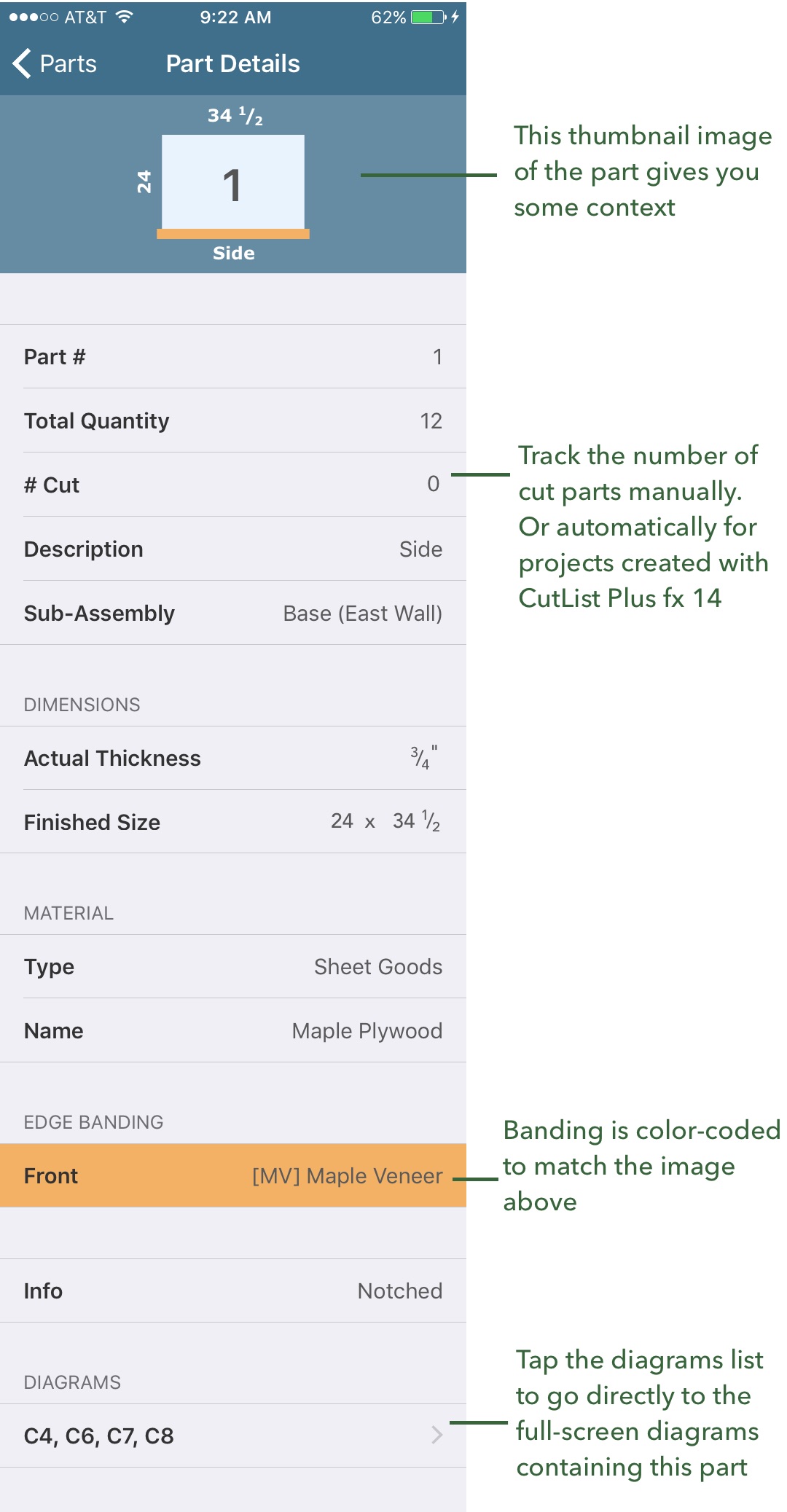

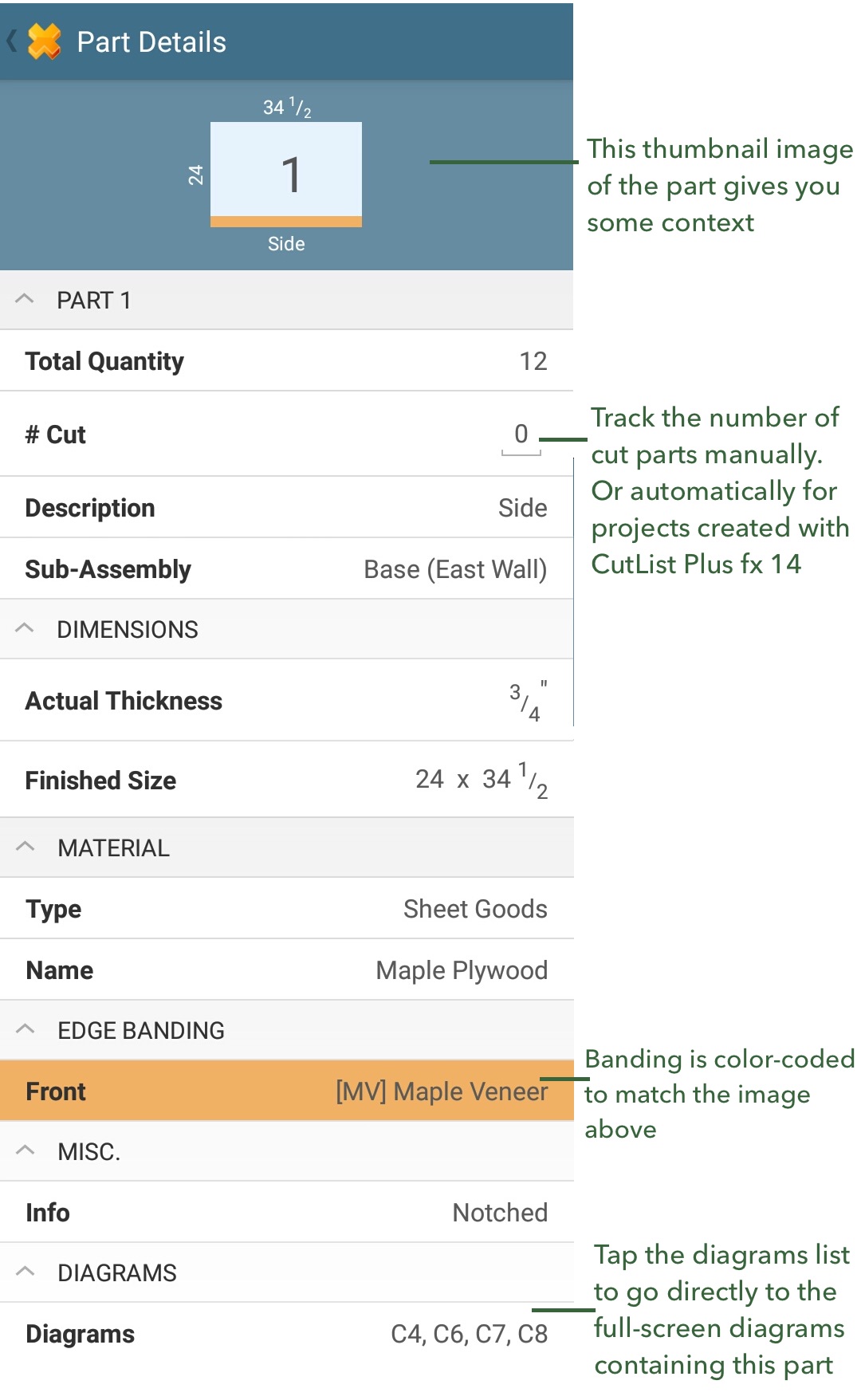

Detailed information for the selected part is shown here. At the top is a small image of the part with any banded edged color-coded.

Scroll to the bottom to see a list of every diagram that contains a copy of this part. Click on this list to jump directly to those diagrams.

Swipe to the side to view the next or previous part details.

Next: The Diagrams List screen.
