Parts List Screen.

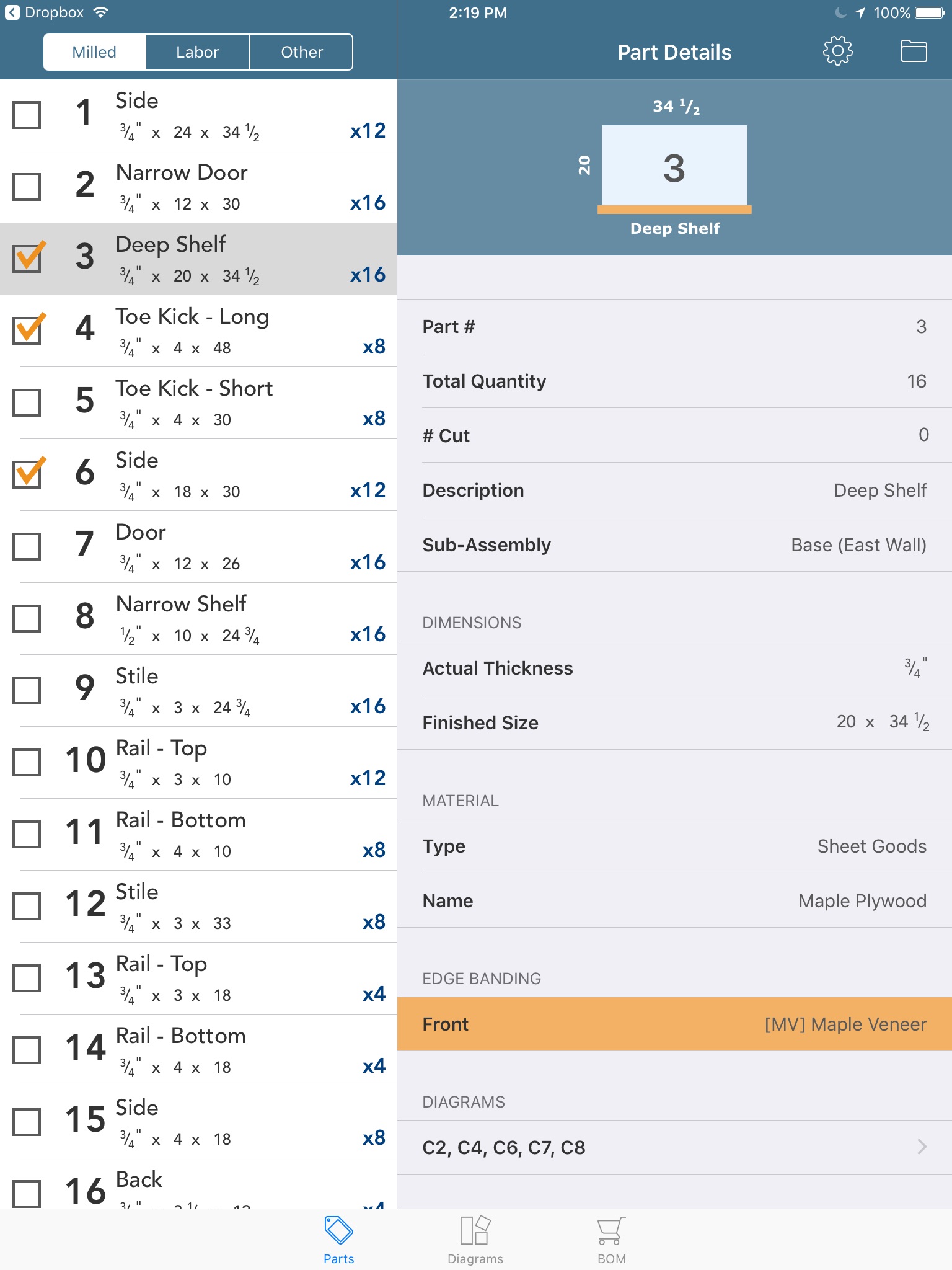

parts list screen

All your parts are listed here. You can switch between Milled Parts, Labor, and Other Items using the buttons at the top of the screen.

Checkboxes can be used to keep track of which parts are completed.

This screen shot shows measurements in inches, but you can switch to metric on the Settings screen.

Detailed information for the selected part is shown on the right. At the top is a small image of the part with any banded edged color-coded.

Scroll to the bottom to see a list of every diagram that contains a copy of this part. Click on this list to jump directly to those diagrams.
